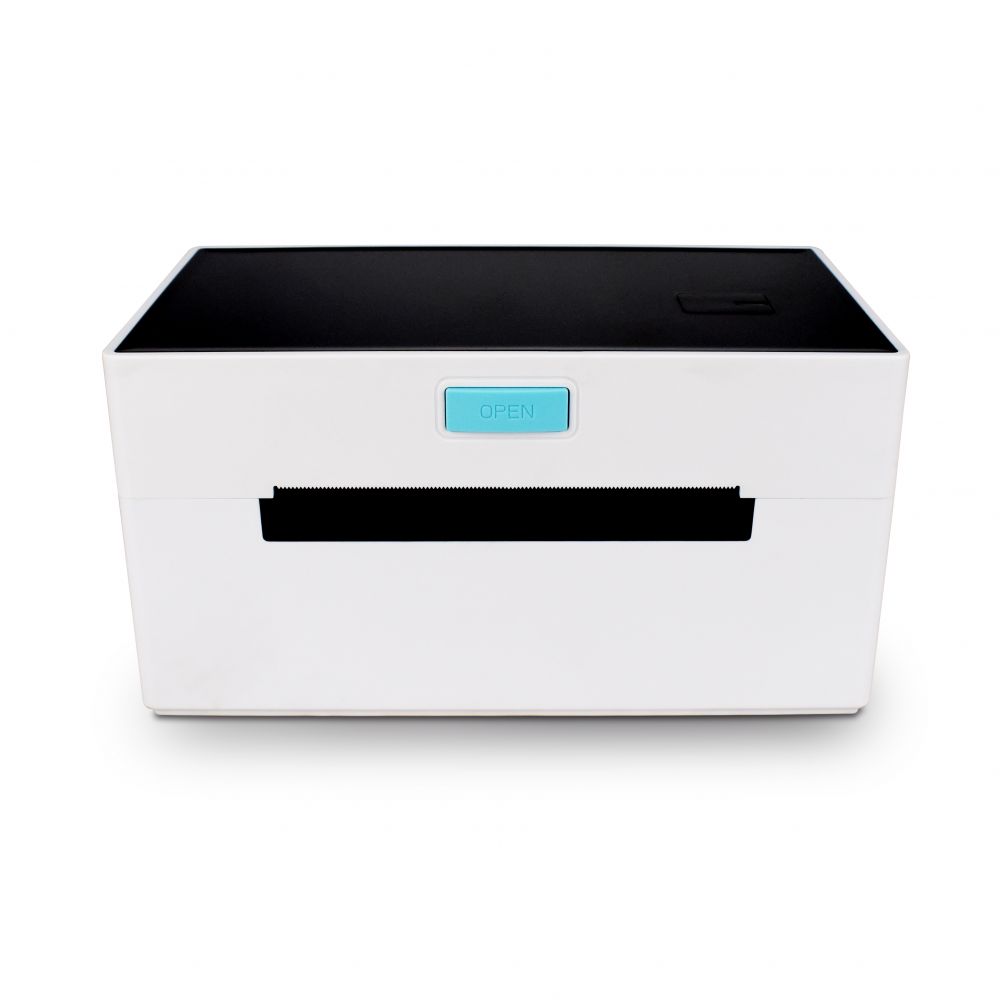

ZJ-9220 Label Printer

Interfaces

USB / LAN / Bluetooth

Print Method

Direct Line Thermal

Color

White+ black

product size

20*11.5*11cm

Specifications

Interfaces USB / LAN / Bluetooth /WIFI (optional)

Print Comand CPCL / TSPL command (ESC/POS command)

Print Method Direct Line Thermal

Resolution 203DPI (8dot/mm)

Print Speed Max to 160mm/s

Media Sensor Transmissive and Reflective

Inner Code Supported 11 types font size

Print parameters Support to download the Logo trademark

One-dimensional code UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128

Two-dimensional code QR CODE,PDF417

Printer Driver Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android

Paper

Thermal Paper Types continuous paper, label paper, folded paper, tag paper

Max paper roll 110*100mm (width*diameter)

Effective Print Width 104mm (Max 800 points)

Available Max Paper Width 110 ± 0.5mm

Paper Thickness 0.06-0.30 mm

Package

Printer Dimension 20*11.5*11cm

Printer N.W. 0.98KG

Package 1pc with accessories/box, 8 boxes/ctn

Accessories Manual, USB Cable, Adapter, Power Cable , Paper Stand

Box Dimension 23*19*17CM

Box G.W. 1.9Kgs

CTN Dimension 47.5*39.5*35.5 cm

CTN G.W. 16kgs

Environmental

Working Temperature +0 ℃ ~ 50 ℃ (no condensation )

Working Humidity 20% ~ 85% RH (no condensation )

Storage Temperature -20 ℃ ~ 60 ℃ (no condensation )

Storage Humidity 5% ~ 95% RH (no condensation )

Mechanical Noise less than 60dB
