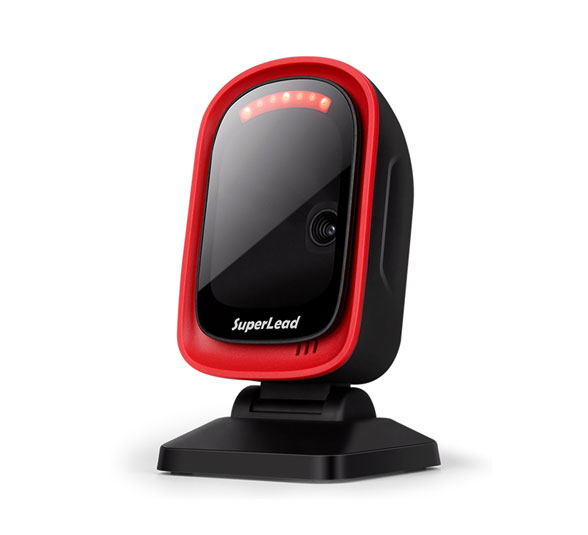

| Suzhou SuperMax Smart System Co., Ltd. | 7201 Technical Specification | |
| Physical Characteristics | ||
| Dimensions: | 83mm x 80mm x 147mm | |
| Weight: | 113g | |
| Voltage: | 3.3-5 VDC | |
| Working Current: | 200mA | |
| Peak Current: | 300mA | |
| Performance Characteristics | ||
| Image (Pixels): | 640 pixels (H)x 480 pixels (V) | |
| Light Source: | Illumination: 6500K LED | |
| Field of View: | 72° (H) x 64° (V) | |
| Roll / Pitch / Yaw: | 360°, ±65°, ±60° | |
| Print Contrast: | 20% minimum reflective difference | |
| Interfaces Supported: | USB, RS232 | |
| Motion Tolerances: | ≥2m/s | |
| Symbology Decode Capability | 1-D: | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc |
| 2-D: | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. | |
| Minimum Resolution: | ≥3.9 mil | |
| User Environment | ||
| Operating Temperature: | -30°C to 70°C | |
| Storage Temperature: | -40°C to 70°C | |
| Humidity: | 0% to 95% relative humidity, non-condensing | |
| Shock Specifications: | Designed to withstand 1.5m(5') drops | |
| Ambient Light Immunity: | 0-100,000 Lux. | |
| Decode Ranges | ||
| 6.88 mil (PDF417) | 0mm-50mm | |
| 10 mil (Data Matrix) | 0mm-50mm | |
| 13 mil (UPCA) | 5mm-110mm | |
| 20 mil (QR) | 0mm-100mm | |
| Performance may be impacted by bar code quality and environmental conditions. | ||
